The Introduction to ADM3053BRWZ CAN Transceiver

Comments · 180 Views

This blog is going to discuss details about ADM3053BRWZ CAN Transceiver.





What is ADM3053BRWZ?

The ADM3053 is an isolated controller area network (CAN) physical layer transceiver with an integrated isolated dc-to-dc converter. The ADM3053 complies with the ISO 11898 standard.

The device employs Analog Devices, Inc., iCoupler® technology to combine a 2-channel isolator, a CAN transceiver, and Analog Devices isoPower® dc-to-dc converter into a single SOIC surface mount package. An on-chip oscillator outputs a pair of square waveforms that drive an internal transformer to provide isolated power. The device is powered by a single 5 V supply realizing a fully isolated CAN solution.



ADM3053BRWZ Features

  • 2.5 kV RMS signal and power isolated CAN transceiver
  • ICEpower integrated isolated dc-to-dc converter
  • 5 V operation on VCC
  • 5 V or 3.3 V operation on VIO
  • Complies with ISO 11898 standard
  • High-speed data rates of up to 1 Mbps
  • Unpowered nodes do not disturb the bus
  • Connect 110 or more nodes on the bus
  • Slope control for reduced EMI
  • Thermal shutdown protection
  • High common-mode transient immunity: 25 kV/μs
  • Safety and regulatory approvals
  • UL recognition
  • 2500 V RMS for 1 minute per UL 1577
  • CSA Component Acceptance Notice 5A
  • VDE Certificate of Conformity
  • DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
  • VIORM = 560 V peak
  • Industrial operating temperature range (−40°C to +85°C)
  • Available in a wide-body, 20-lead SOIC package



ADM3053BRWZ Applications

  • CAN data buses
  • Industrial field networks



ADM3053BRWZ Pinout

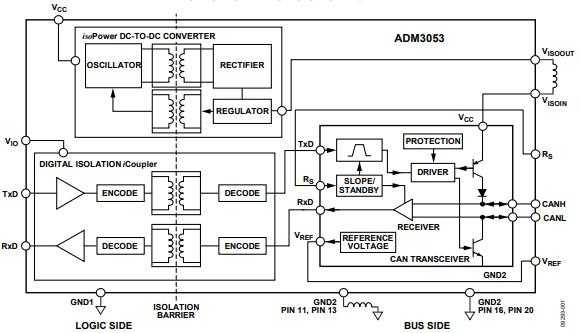

ADM3053BRWZ Functional Block Diagram





ADM3053BRWZ Dimensions
